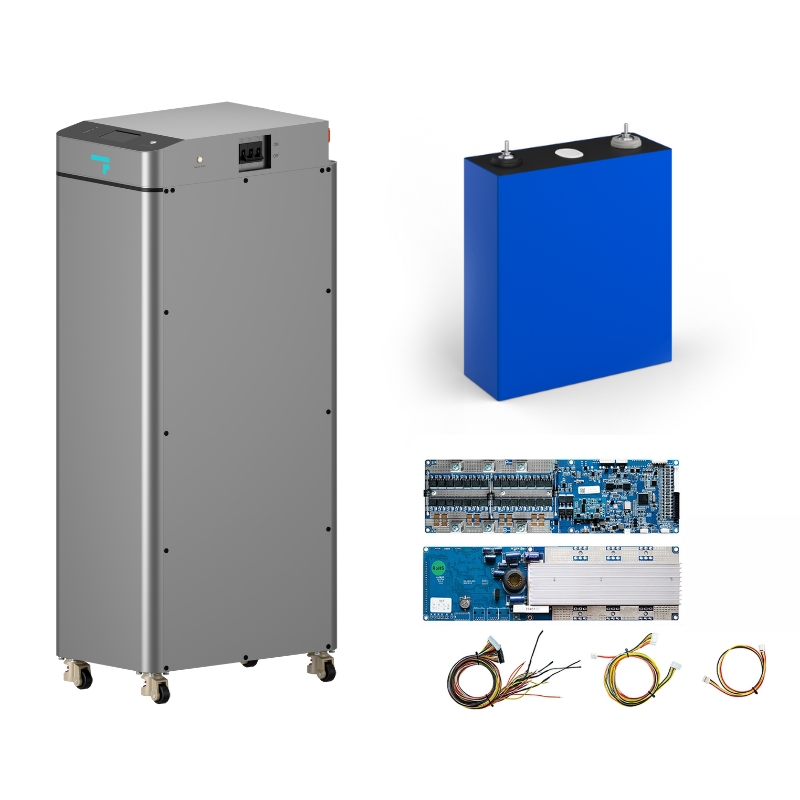

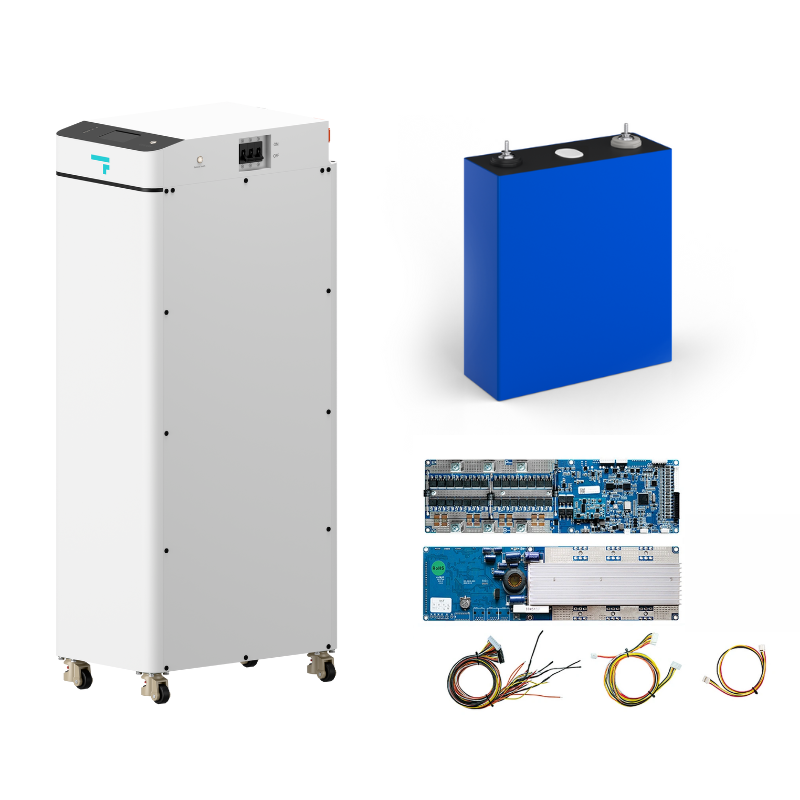

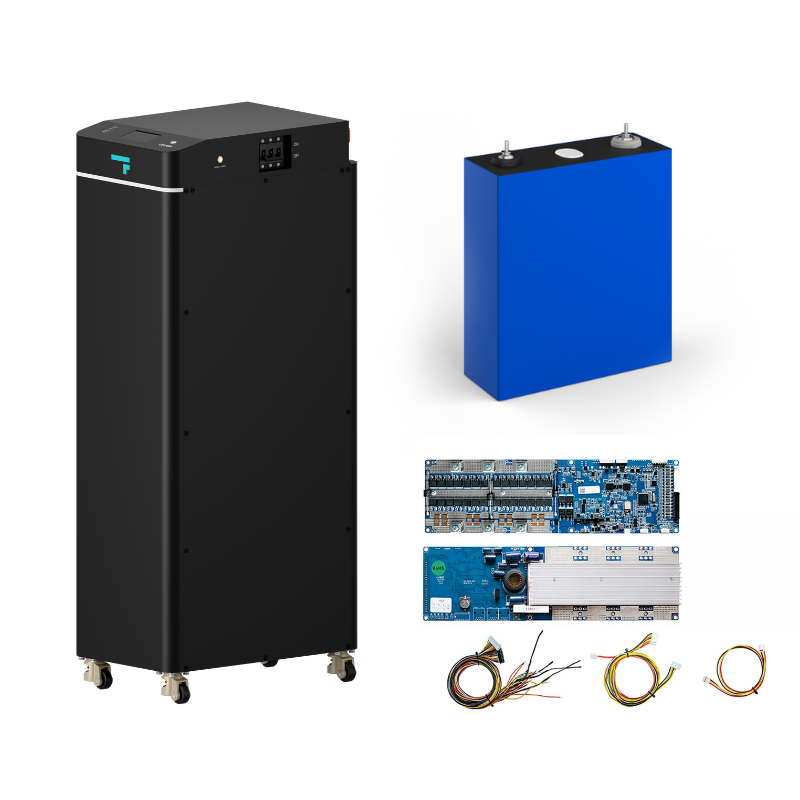

SEPLOS V4 Kit and x16 Envision 315Ah Grade B Bundle

The SEPLOS V4 DIY battery bundle with Envision 315Ah Cells is a complete cost-effective solution for building your own 15.12kWh 48V solar battery system.

This bundle includes;

• A SEPLOS V4 Kit
• A SEPLOS V3 BMS
• x16 Envision 315Ah Grade B Cells

Key Features:

• Modular Design: Expand your battery capacity effortlessly by connecting up to 16 additional packs in parallel.
• Smart BMS: The included V3 SEPLOS BMS (with Bluetooth) seamlessly integrates with various inverters (Victron, Growatt, Sofar, Solis, etc.) via CAN & RS485.
• Intuitive User Interface: Easily monitor battery status, charge/discharge rates, and system performance via the LCD colour screen.
• 250A DC Breaker: Provides reliable protection and safeguards your battery system from excessive currents and short circuits.
• Active Balancing: Provides optimised cell performance and ensures balanced charging and discharging among individual cells.
• Envision 315Ah:  these high capacity cells have a lifespan of 8000 cycles @ 0.5C.

Envision 315Ah Technical Specifications:

• Manufacturer: Envision
• Model: HC-L315A 3.2V 315Ah
• Size: 71mm x 207mm x 174mm
• Capacity: 315Ah
• Weight: 5.6KG
• Standard Charge Voltage: 3.65V
• Maximum Discharge Power: 1P
• Nominal Voltage: 3.2V
• Cycle Life : 8000 cycles @ 0.5C
• Top: Screw Terminals, bus bars and screws included.
• Protection: None
